Brand Name : OEM
Model Number : LX18005LX-05
Certification : CE,FCC,ROHS
Place of Origin : China
MOQ : 5pcs
Payment Terms : T/T, Western Union
Supply Ability : 60Kpcs/month
Delivery Time : 5-8 working days
Packaging Details : Standard export package
Type : TFT
Resolution : 128*160
Size : 1.8inch
Interface : MCU/RGB
Working Voltage : 3.3 V
Application : Industrial , Consumer
Connector : FPC
brightness : 320cd/m2
Active Area : 28.032mm(W)*35.04mm(H)
1.77 inch 1.8 inch capacitive touch panel 128x160 TFT modules IPS LCD display
1 | LCD Type | TFT LCD module panel |
2 | Dot Arrangement | 128x(R.G.B)x160 |
4 | Active Area | 28.032mm*35.04mm |
5 | Interface | CPU 8/16 Bits |
6 | Driver IC | ST7789 |
8 | FPC Type | Soldering Type |
9 | Viewing Angle | 6 O'Clock |
10 | Operation Temp | -20~+70C |
11 | Touch panel | Option of resistive touch panel |
![]() |

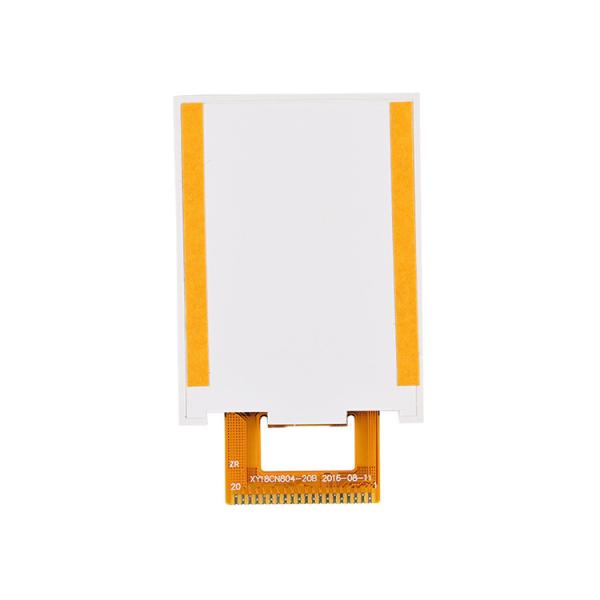

Capacitive 1.8inch 128x160 320cd/M2 Industrial Touch Screen Panel Images |
